RIO GRANDE
Contributing agency
Station summaryRGDG
| IGS-type acronym : | RGDG00ARG |
| Latitude : | -53.78583854 |
| Longitude : | -67.75152794 |
| Installed date : | 2013-06-24 |
| Decommissioned date : | |
| Country : | ARGENTINA |
| City: | RIO GRANDE |
| Station status : | active (green) |
| Distance to Tide Gauge (m) : | 4753 |
| Domes Nr.: | 41507M007 |
| Station operator: | (CNES) - Centre National d"Etudes Spatiales (EARG) - Estacion Astronomica Rio Grande |
| IGS-like station form : |
GPS position times seriesRGDG
(Reference epoch: )
| M | Material change or malfunction |
| E | Earthquake |
| RF | Reference Frame change |
| U | Unknown |
| NA | Not available |
| Position discontinuity | |
| Velocity discontinuity |
Data available at SONELRGDG
Quality plots on RINEX filesRGDG
 |
 |
Plots generated using software developed with the EPN team at ROB |
| Observations & tracking performance | Satellite tracking |
(this operation may take 20 to 45s)
The satellite tracking graph has been calculated for all stations for the first day of each month. If you wish to have a graph for another date, choose the 'Calculate a specific date' option.
Co-located instrumentsRGDG
- GPS : Rio Grande (RIOG)
- GPS : Rio Grande 2 (RIO2)
- Doris : RIO GRANDE (RIQB)
- Tide gauge : RIO GRANDE (RIOTG)

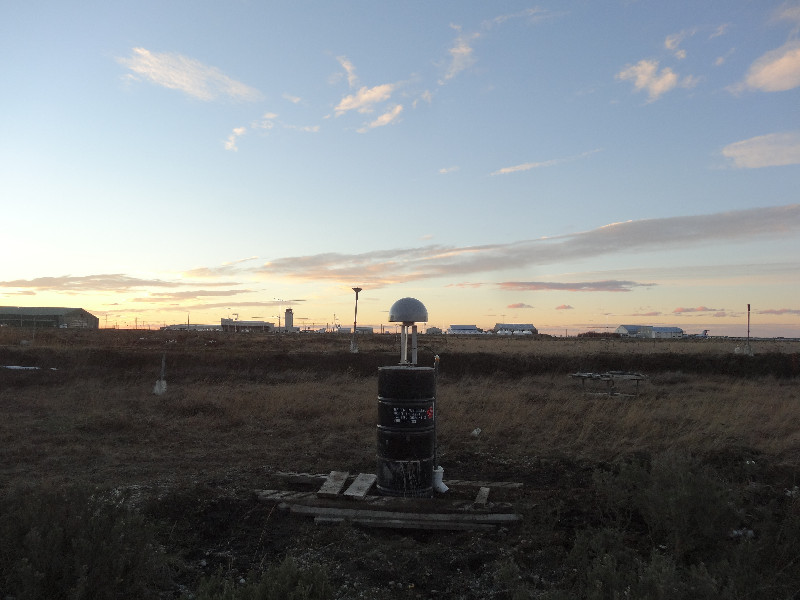

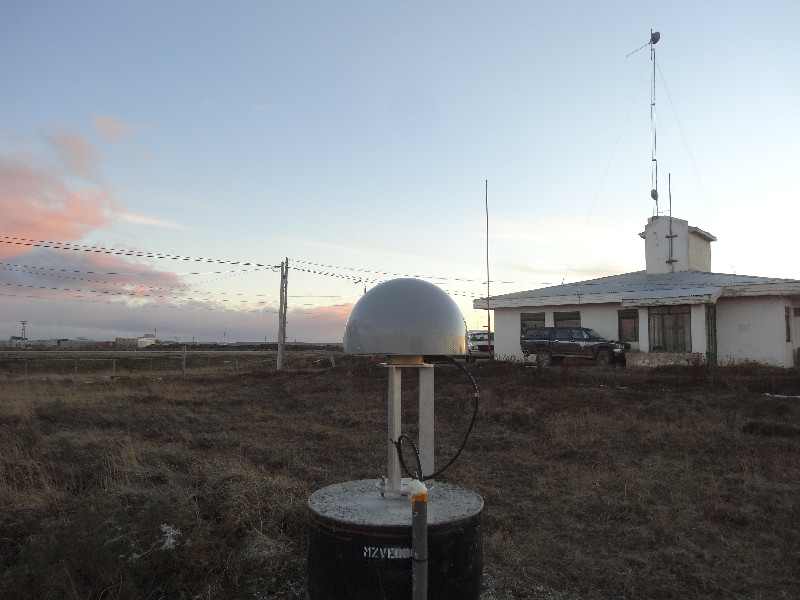

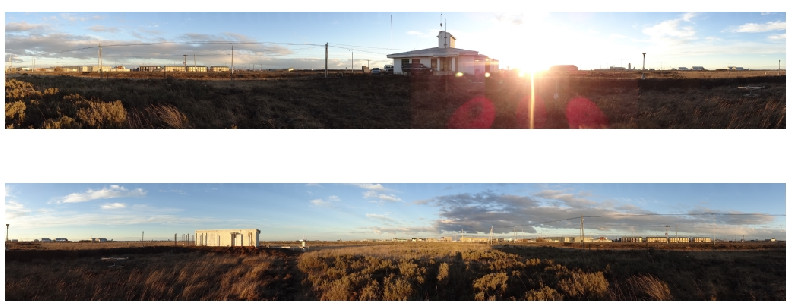

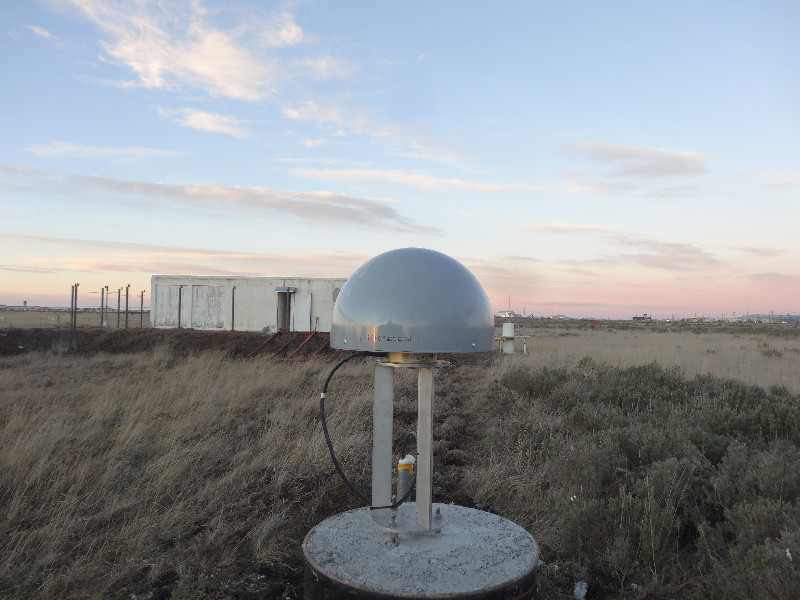

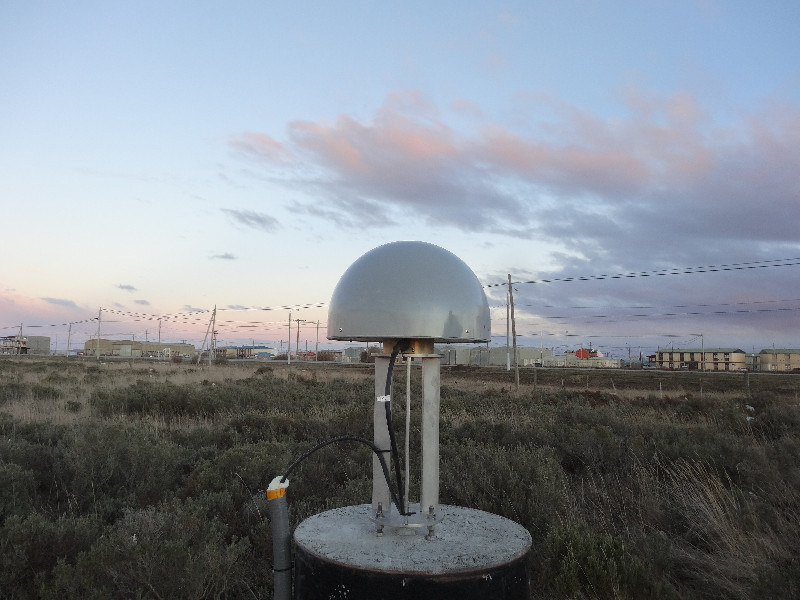

Photo albumRGDG
Log bookRGDG
[IGSSTATION-7962] - 2020-05-26 (09/06/2020)
A firmware upgrade was done for CIBG, CHPG, CPVG, FTNA, JFNG, KERG, MAYG, OWMG, RGDG, SEYG stations (5.45 version for Trimble Alloy/NetR9), on 2020-05-25.
New sitelogs have been submitted to IGS.
[IGSSTation-7817] - 2019-12-06 (20/12/2019)
Receiver was changed on RGDG station (Argentina). The new sitelog has been submitted to IGS.
3.12 Receiver Type : TRIMBLE NETR9
Satellite System : GPS GLO GAL BDS SBAS
Serial Number : 5101K72942
Firmware Version : 5.42
Elevation Cutoff Setting : 0 deg
Date Installed : 2019-10-24T08:42Z
Date Removed : 2019-12-05T12:45Z
Temperature Stabiliz. : 25.0 /- 5.0
Additional Information :
3.13 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS GLO GAL BDS SBAS
Serial Number : 5823R40011
Firmware Version : 5.43
Elevation Cutoff Setting : 0 deg
Date Installed : 2019-12-05T15:30Z
Date Removed : CCYY-MM-DDThh:mmZ
Temperature Stabiliz. : 25.0 /- 5.0
Additional Information :
[IGSSTation-7358] - 2018-07-11 (12/07/2018)
Antenna has been changed on RGDG (Argentina) with same model due to a failure on previous one. Sitelog has been submitted to IGS.
New antenna is under qualification so RT and DT data dissemination is interrupted until further notification.
