MANILA
Contributing agency
Station summaryPTGG
| IGS-type acronym : | PTGG00PHL |
| Latitude : | 14.53540222 |
| Longitude : | 121.04126541 |
| Installed date : | 2014-12-05 |
| Decommissioned date : | |
| Country : | PHILIPPINES |
| City: | MANILA |
| Station status : | active (green) |
| Distance to Tide Gauge (m) : | 9615 |
| Domes Nr.: | 22006M006 |
| Station operator: | (CNES) - Centre National d"Etudes Spatiales |
| IGS-like station form : |
GPS position times seriesPTGG
(Reference epoch: )
| M | Material change or malfunction |
| E | Earthquake |
| RF | Reference Frame change |
| U | Unknown |
| NA | Not available |
| Position discontinuity | |
| Velocity discontinuity |
Data available at SONELPTGG
Quality plots on RINEX filesPTGG
 |
 |
Plots generated using software developed with the EPN team at ROB |
| Observations & tracking performance | Satellite tracking |
(this operation may take 20 to 45s)
The satellite tracking graph has been calculated for all stations for the first day of each month. If you wish to have a graph for another date, choose the 'Calculate a specific date' option.
Comparison with satellite altimetry data
- Link to Sea Level Differences (Satellite altimetry minus tide gauge data).
Co-located instrumentsPTGG
Leveling & DatumsPTGG

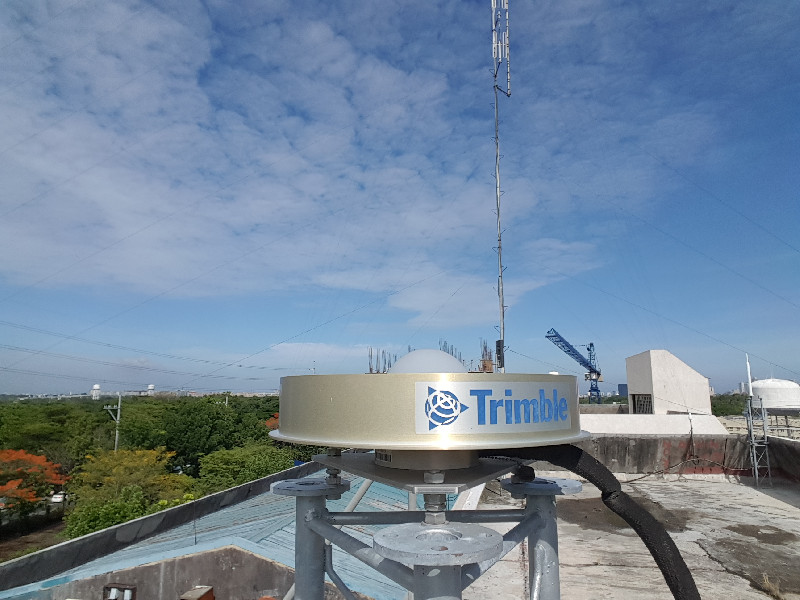

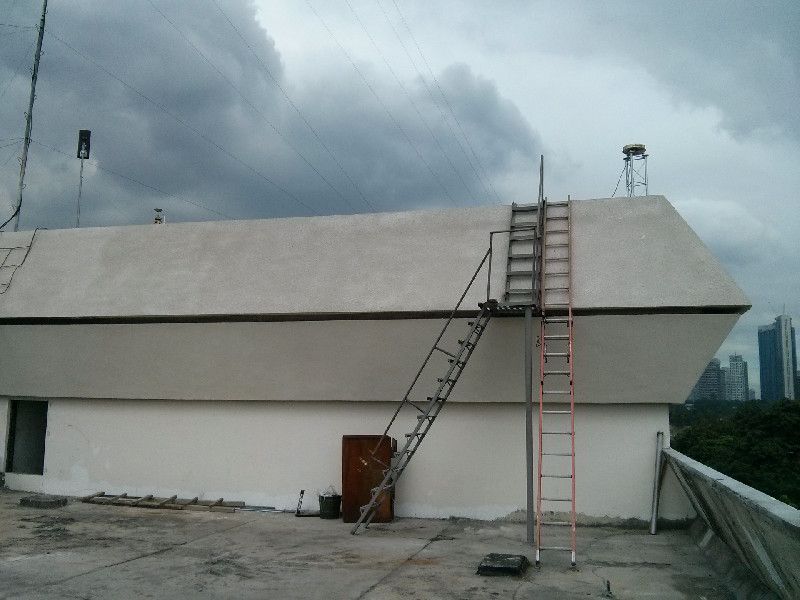

Photo albumPTGG
BibliographyPTGG
If you have a relevant reference to suggest, please send-us an e-mail : sonel@sonel.org-
Raucoules, Le Cozannet et al., 2013. High nonlinear urban ground motion in Manila (Philippines) from 1993 to 2010 observed by DInSAR: Implications for sea-level measurement. Remote Sensing of Environment.
Log bookPTGG
[IGSSTATION-7868] - 2020-02-06 (17/03/2020)
A firmware upgrade was done on PTGG station. The new sitelog has been submitted to IGS.
3.11 Receiver Type : SEPT POLARX5
Satellite System : GPS GLO GAL BDS QZSS SBAS IRNSS
Serial Number : 17323022502
Firmware Version : 5.3.0
Elevation Cutoff Setting : 0 deg
Date Installed : 2019-10-22T12:11Z
Date Removed : 2020-02-06T07:52Z
Temperature Stabiliz. : 29.0 /- 5.0
Additional Information :
3.12 Receiver Type : SEPT POLARX5
Satellite System : GPS GLO GAL BDS QZSS SBAS IRNSS
Serial Number : 17323022502
Firmware Version : 5.3.2
Elevation Cutoff Setting : 0 deg
Date Installed : 2020-02-06T07:57Z
Date Removed : CCYY-MM-DDThh:mmZ
Temperature Stabiliz. : 29.0 /- 5.0
Additional Information :
[IGSSTATION-7350] - 2018-07-04 (12/07/2018)
A new receiver on PTGG station will be changed for the 10th july. This new receiver will be a Septentrio PolaRx5.
[IGSSTATION-7357] - 2018-07-10 (12/07/2018)
A new receiver was installed on PTGG station. The new sitelog has been submitted to IGS.
[IGSSTATION-7273] - 2018-03-09 (12/03/2018)
The station of PTGG is on line now. A new antenna has been changed the 14th February due to a failure. All the data since this day has been retreated.
The data between 06/11/18 and 14/02/18 are not available due to this failure.
[IGSSTATION-7174] - 2017-11-02 (15/11/2017)
The station encountered an issue concerning the L2 and L5 reception. All is done to recover a normal state as soon as possible.
[IGSSTATION-6936] - 2017-01-31 (08/02/2017)
PTGG station is back online since DOY 019/2017 (receiver issue).
Data from DOY 347/2016 06:30Z to 019/2017 11:00Z have been lost.
