KERGUELEN ISLANDS
Contributing agency
Station summaryKRGG
| IGS-type acronym : | KRGG00ATF |
| Latitude : | -49.35154300 |
| Longitude : | 70.25550600 |
| Installed date : | 2012-03-23 |
| Decommissioned date : | |
| Country : | FRANCE |
| City: | KERGUELEN |
| Station status : | active (green) |
| Distance to Tide Gauge (m) : | 2648 |
| Domes Nr.: | 91201M007 |
| Station operator: | (IGN) - Institut National de l'Information Géographique et Forestière (CNES) - Centre National d"Etudes Spatiales |
| IGS-like station form : |
GPS position times seriesKRGG
(Reference epoch: )
| M | Material change or malfunction |
| E | Earthquake |
| RF | Reference Frame change |
| U | Unknown |
| NA | Not available |
| Position discontinuity | |
| Velocity discontinuity |
Data available at SONELKRGG
Quality plots on RINEX filesKRGG
 |
 |
Plots generated using software developed with the EPN team at ROB |
| Observations & tracking performance | Satellite tracking |
(this operation may take 20 to 45s)
The satellite tracking graph has been calculated for all stations for the first day of each month. If you wish to have a graph for another date, choose the 'Calculate a specific date' option.

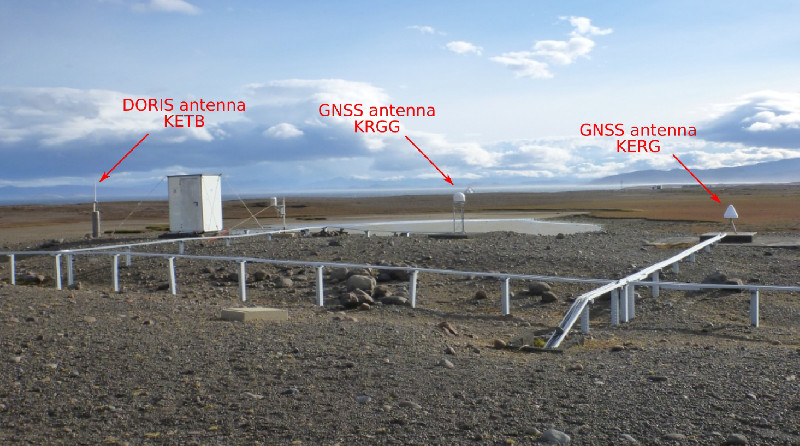

Co-located instrumentsKRGG
- GPS : Kerguelen Islands (KERG)
- Tide gauge : KERGUELEN (KERGU)
- Doris : KERGUELEN (KETB)
- GPS : Kerguelen - Pilier NIVMER (KETG)
- GPS : Kerguelen Reflectometry (KERR)
Leveling & DatumsKRGG
Photo albumKRGG
BibliographyKRGG
If you have a relevant reference to suggest, please send-us an e-mail : sonel@sonel.org-
DONAL, 2017. Kerguelen ITRF co-location site survey. Rapport Technique IGN/SGN, RT/G 243.
Log bookKRGG
[IGSSTATION-7956] - 2020-05-18 (20/05/2020)
A firmware upgrade was done on KRGG station. The new sitelog has been submitted to IGS.
3.19 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS GLO GAL BDS QZSS SBAS IRNSS
Serial Number : 5829R40084
Firmware Version : 5.43
Elevation Cutoff Setting : 0 deg
Date Installed : 2020-02-18T14:48Z
Date Removed : 2020-05-18T06:54Z
Temperature Stabiliz. : 21.0 /- 3.0
Additional Information :
3.20 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS GLO GAL BDS QZSS SBAS IRNSS
Serial Number : 5829R40084
Firmware Version : 5.45
Elevation Cutoff Setting : 0 deg
Date Installed : 2020-05-18T07:20Z
Date Removed : CCYY-MM-DDThh:mmZ
Temperature Stabiliz. : 21.0 /- 3.0
Additional Information :
[IGSSTATION-7889] - 2020-02-19 (18/03/2020)
A firmware upgrade to 5.43 version was done on Trimble NetR9 ASCG, OWMG, SEYG and Trimble Alloy KRGG stations. The new sitelog have been submitted to IGS.
[IGSSTATION-7742] - 2019-09-25 (26/09/2019)
A firmware upgrade was done on KRGG station. The new sitelog has been submitted to IGS.
3.17 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS GLO GAL BDS SBAS IRNSS
Serial Number : 5829R40084
Firmware Version : 5.37
Elevation Cutoff Setting : 0 deg
Date Installed : 2019-06-12T06:03Z
Date Removed : 2019-09-25T15:03Z
Temperature Stabiliz. : 21.0 /- 3.0
Additional Information :
3.18 Receiver Type : TRIMBLE ALLOY
Satellite System : GPS GLO GAL BDS SBAS IRNSS
Serial Number : 5829R40084
Firmware Version : 5.42
Elevation Cutoff Setting : 0 deg
Date Installed : 2019-09-25T15:23Z
Date Removed : CCYY-MM-DDThh:mmZ
Temperature Stabiliz. : 21.0 /- 3.0
Additional Information :
[IGSSTATION-7381] - 2018-07-27 (30/07/2018)
A firmware upgrade was done on KOUG, KRGG, CIBG, THTG stations. The new sitelog has been submitted to IGS.
The new version is 4.20/6.524 for all this stations
[IGSSTATION-6935] - 2017-01-31 (08/02/2017)
KRGG station is back online since DOY 025/2017 (cable change).
Data from DOY 343/2016 13:00Z to 025/2017 16:00Z have been lost.
[IGSSTATION-6877] - 2016-12-12 (12/12/2016)
KRGG station is encountering some problems since doy 343.
Everything is done to fix the problem as soon as possible.
[IGSSTATION-6674] - 2016-05-30 (31/05/2016)
KERG and KRGG stations (Kerguelen Island) are available since 2016-05-24 06h00 UT. Data have been submitted for this period.
We’ve encountered a data loss on KRGG between 2016-05-27 05h30Z and 2016-05-29 01h15Z.
[IGSSTATION-6660] - 2016-05-24 (24/05/2016)
KERG and KRGG stations (Kerguelen Island) are unavailable since 2016-05-20 06h00 UT. An investigation is in progress (network issue).
We will keep you informed on when the problem will be fixed.
[IGSSTATION-6603] - 2016-04-06 (07/04/2016)
Galileo tracking has been disabled on KRGG station since 2016-03-31 07hTU due to repeated crashes, waiting for next firmware update.
