Levelling detail for

Benchmark positionning related to the tide gauge station

2007-10-02

1996-10-01

Benchmarks description table

SOURCE : Fiche d'observatoire de marée SHOM n°2938

Levelling campain :

Benchmark	Latitude (°)	Longitude (°)	Height (m)	Distance to Tide Gauge (m)
B	----	----	7.927	----
NU-2	----	----	8.100	----
H	----	----	7.908	----
G	----	----	8.694	----
2417A	----	----	9.041	----
NU-3	----	----	9.024	----
T	----	----	8.708	----
2417C	----	----	8.574	----
1016	----	----	8.431	----
V	----	----	8.160	----
S	----	----	8.160	----
NU-6	----	----	8.140	----
NU-5	----	----	8.125	----
R	----	----	8.206	----
R'	----	----	8.218	----
X	----	----	7.816	----
Y	----	----	8.709	----
Z	----	----	8.166	----
R1	----	----	---	----
R2	----	----	---	----
W	----	----	---	----

Legend : Fondamental benchmark

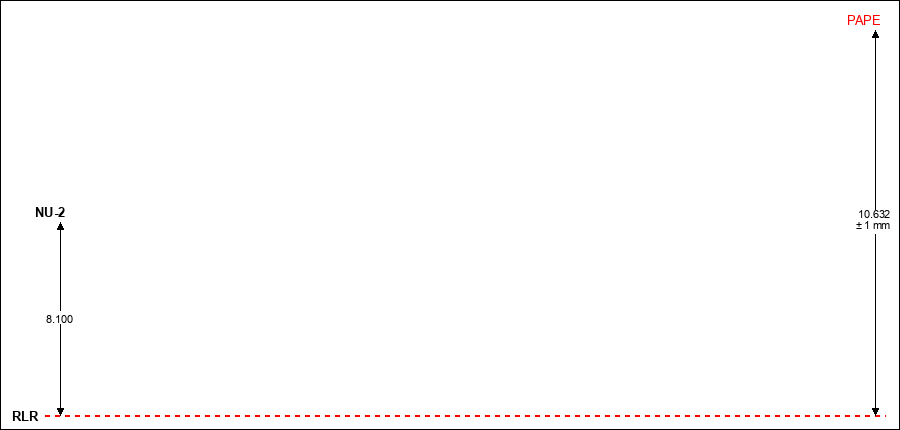

Benchmarks vertical positionning diagram

Reference:

Leveling evolution

Stand point			NU-2	PATB	PATB	PATB	PATB	PATB	PATB	PAQB	PAQB	PAQB	PAQB	PAQB	PAPB	PAPB	PAPB	PAPB	PATB MARK	PATB MARK	PATB MARK	THTI	THTI	TAHI	B	B	B	B
End point			PAPE	PAQB	PAPB	PATB MARK	THTI	TAHI	NASA 7124	PAPB	PATB MARK	THTI	TAHI	NASA 7124	PATB MARK	THTI	TAHI	NASA 7124	THTI	TAHI	NASA 7124	TAHI	NASA 7124	NASA 7124	H	G	NU-2	UH-1A
Distance (m)			----	0	342	0	7	323	32	342	0	7	323	32	342	337	20	358	7	323	32	317	38	338	----	----	----	----
Height difference (m)	Campaign 5	2019-05-13	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---
	Campaign 4	2008-01-10	2.5319 ± 0.001	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---
	Campaign 3	2007-10-02	---	-0.0060 ± 0.001	-24.3990 ± 0.001	-1.4220 ± 0.001	-1.4330 ± 0.001	-25.4350 ± 0.001	-5.0780 ± 0.001	-24.3930 ± 0.001	-1.4160 ± 0.001	-1.4270 ± 0.001	-25.4290 ± 0.001	-5.0720 ± 0.001	22.9770 ± 0.001	22.9660 ± 0.001	-1.0360 ± 0.001	19.3210 ± 0.001	-0.0110 ± 0.001	-24.0130 ± 0.001	-3.6560 ± 0.001	-24.0020 ± 0.001	-3.6450 ± 0.001	20.3570 ± 0.001	---	---	---	---
	Campaign 2	2006-05-29	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	-0.0180 ± 0.001	0.7740 ± 0.001	0.1640 ± 0.001	---
	Campaign 1	1996-10-01	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	---	-0.0180 ± 0.001	0.8080 ± 0.001	---	0.1860 ± 0.001
Height difference evolution graph

Download leveling data

TIDE GAUGE LOCAL LEVELING NETWORK DATA OF STATION PAPEETE ----------------------------------------------------------------------------------------------------- Benchmark Lat. Long. Height Year of determination St.dev Distance_to_TG 10chr (°) 14chr (°) 14chr (m) 10chr 22chr (m)10chr (m) 10chr ----------------------------------------------------------------------------------------------------- PATB -17.577037 -149.606389 ---- ---- ---- 6040 PAQB -17.577037 -149.606389 ---- ---- ---- 6040 PAPB -17.576510 -149.609565 ---- ---- ---- 6200 PATB MARK -17.577037 -149.606389 ---- ---- ---- 6040 THTI -17.577064 -149.606446 ---- ---- ---- 6040 TAHI -17.576517 -149.609379 ---- ---- ---- 6180 NASA 7124 -17.576806 -149.606206 ---- ---- ---- 6000 NU-2 ---- ---- 8.100 2019 0.00000 ---- PAPE ---- ---- 10.632 2008 0.00100 ---- B ---- ---- 7.927 2019 0.00000 ---- H ---- ---- 7.908 2019 0.00100 ---- G ---- ---- 8.694 2019 0.00100 ---- UH-1A ---- ---- 1.485 1996 0.00100 ---- 2417A ---- ---- 9.041 2019 0.00100 ---- NU-3 ---- ---- 9.024 2019 0.00100 ---- T ---- ---- 8.708 2019 0.01000 ---- 2417C ---- ---- 8.574 2019 0.00100 ---- 1016 ---- ---- 8.431 2019 0.00100 ---- V ---- ---- 8.160 2019 0.00100 ---- S ---- ---- 8.160 2019 0.00100 ---- NU-6 ---- ---- 8.140 2019 0.00100 ---- NU-5 ---- ---- 8.125 2019 0.00100 ---- R ---- ---- 8.206 2019 0.00100 ---- R' ---- ---- 8.218 2019 0.00100 ---- X ---- ---- 7.816 2019 0.00100 ---- Y ---- ---- 8.709 2019 0.00100 ---- Z ---- ---- 8.166 2019 0.00100 ---- R1 ---- ---- ---- ---- ---- ---- R2 ---- ---- ---- ---- ---- ---- W ---- ---- ---- ---- ---- ----

Download in txt human readable format

Download in csv format
