LEVELING OF GALVESTON
Benchmarks description table

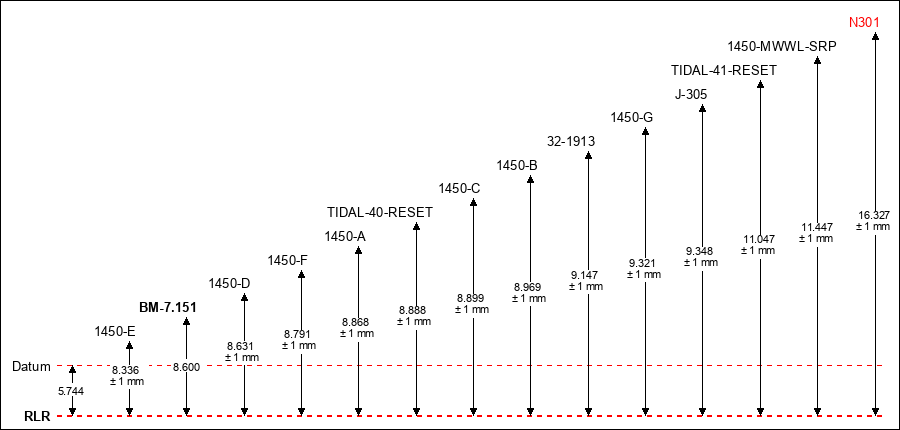

Benchmarks vertical positionning diagram
Reference:
Leveling evolution
| Stand point | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | BM-7.151 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| End point | 1450-B | 32-1913 | J-305 | TIDAL-40-RESET | TIDAL-41-RESET | 1450-A | 1450-C | 1450-D | 1450-E | 1450-F | 1450-G | N301 | 1450-MWWL-SRP | ||
| Distance (m) | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ---- | ||
| Height difference (m) | Campaign 1 | 2019-01-01 | 0.3690 ± 6.0E-6 | 0.5469 ± 6.0E-6 | 0.7475 ± 6.0E-6 | 0.2881 ± 6.0E-6 | 2.4475 ± 6.0E-6 | 0.2682 ± 6.0E-6 | 0.2993 ± 6.0E-6 | 0.0313 ± 6.0E-6 | -0.2644 ± 6.0E-6 | 0.1907 ± 6.0E-6 | 0.7213 ± 6.0E-6 | 7.7274 ± 6.0E-6 | 2.8475 ± 6.0E-6 |
| Height difference evolution graph |  |  |  |  |  |  |  |  |  |  |  |  |  | ||
Download leveling data
TIDE GAUGE LOCAL LEVELING NETWORK DATA OF STATION Galveston 1
-----------------------------------------------------------------------------------------------------
Benchmark Lat. Long. Height Year of determination St.dev Distance_to_TG
10chr (°) 14chr (°) 14chr (m) 10chr 22chr (m)10chr (m) 10chr
-----------------------------------------------------------------------------------------------------
BM-7.151 ---- ---- 8.600 2019 0.00000 ----
1450-B ---- ---- 8.969 2019 0.00100 ----
32-1913 ---- ---- 9.147 2019 0.00100 ----
J-305 ---- ---- 9.348 2019 0.00100 ----
TIDAL-40-R ---- ---- 8.888 2019 0.00100 ----
TIDAL-41-R ---- ---- 11.047 2019 0.00100 ----
1450-A ---- ---- 8.868 2019 0.00100 ----
1450-C ---- ---- 8.899 2019 0.00100 ----
1450-D ---- ---- 8.631 2019 0.00100 ----
1450-E ---- ---- 8.336 2019 0.00100 ----
1450-F ---- ---- 8.791 2019 0.00100 ----
1450-G ---- ---- 9.321 2019 0.00100 ----
N301 ---- ---- 16.327 2019 0.00100 ----
1450-MWWL- ---- ---- 11.447 2019 0.00100 ----
Co-located instruments
- GPS : Galveston 1 (GAL1)
- GPS : Galveston (TXGV)
- Tide Gauge : GALVESTON Pier 21 (G21TG)
- Tide Gauge : GALVESTON Pleasure Pier (GPPTG)
- GPS : Galveston A (TXGA)
- GPS : Galveston Pier 21 (N301)
- GPS : TXNJ North Jetty (TXNJ)
